BubbleRAN Hardware Requirements

This page defines the minimum and recommended hardware requirements for BubbleRAN installations.

5G O-RAN Server Requirements

Minimum requirements for infrastructure nodes:

• CPU with AVX512 support
• Base or boost clock above 4.0 GHz
• More than 16 physical cores
• More than 64 GB RAM, DDR5/DDR6
• More than 1 TB NVMe or SSD (write-intensive)
• NIC Intel E810-XXVDA2 or Intel E810-XXVDA4 (required, only NICs validated for 100% compatibility)
• Form factor: Tower or Rack
• Cooling: Fan or Liquid (preferred)

Example CPU options:

• AMD Ryzen 9 9950X, 16C/32T
• AMD EPYC 9275F, 24C/48T
• AMD EPYC Turin 9355P, 32C/64T, 3.55 GHz base, 4.4 GHz boost, 256 MB, 280 W, SP5
• AMD EPYC Turin 9555P, 64C/128T, 3.2 GHz base, 4.4 GHz boost, 256 MB, 360 W, SP5

warning

Please validate that any selected CPU meets the minimum core count, AVX512 flags frequency requirements.

tip

Check if your cpu has AVX512 support by running lscpu | grep avx512 command. If the output is empty, it means that your CPU does not support AVX512 instructions, which are required.

AI-RAN GPU Requirements

Supported and validated GPU options:

• NVIDIA RTX PRO 6000 Blackwell Server Edition, 96 GB GDDR7, PCIe 5, 600 W
• NVIDIA RTX PRO 5000 Blackwell, PCIe 5, 48 GB
• NVIDIA H100
• NVIDIA H200
• NVIDIA A100

Tested Hardware

Control-Plane Node

2U Supermicro SAS28D6

• 1x AMD EPYC Turin 9135, 16C/32T, 3.65 GHz base, 4.3 GHz boost, 64 MB, 200 W, SP5
• 2x Samsung 32 GB DDR5 5600 MHz Registered ECC
• 1x Supermicro H13SSL-N, AMD EPYC Genoa-UP socket, 5x PCIe Gen5, 12x DDR5, 2x Intel 1GbE, 2x M.2, 10x SATA/NVMe
• 1x Supermicro SFT-OOB-LIC, per-node license for out-of-band BIOS management/upgrade via IPMI
• 1x Supermicro CSE-825TQC-R802LPB, 8x SATA/SAS III hot-swappable, 2U, rails included, 800 W redundant PSU, Titanium level
• 1x Samsung DC PM9A3 960 GB, NVMe PCIe 4.0 x4, V4 TLC V, M.2 (1 DWPD/5Y), medium endurance
• 1x Yes: IPMI/hardware RAID preinstall service (excluding OS install)
• 2x Outlet power cable, 1.8 m, C13 IEC to C14 IEC for remote powerswitch/UPS

Dell PowerEdge R7725 (recommended for AI-RAN)

• Chassis: PowerEdge R7725, up to 8x E3.5 NVMe Direct bays
• CPU: 2x AMD EPYC 9135, 3.65 GHz, 16C/32T, 64 MB cache, 200 W, DDR5-6400
• Memory: RDIMM 6400 MT/s, 2x 64 GB (128 GB total)
• Boot: BOSS-N1 controller with 2x M.2 480 GB (RAID 1)
• Storage: 2x 1.6 TB NVMe E3s Gen5 mixed-use SSD (with carriers)
• GPU: 1x NVIDIA RTX PRO 6000 Blackwell Server Edition 96 GB PCIe, 600 W cable installed
• PSU: Redundant (1+1) 3200 W Titanium, hot-plug
• Cooling: PowerEdge 2U high-performance fans

Worker Nodes

2U Supermicro SAS28D6

• 1x AMD EPYC Turin 9355P, 32C/64T, 3.55 GHz base, 4.4 GHz boost, 256 MB, 280 W, SP5
• 2x Samsung 32 GB DDR5 4800 MHz Registered ECC
• 1x Supermicro H13SSL-N, AMD EPYC Genoa-UP socket, 5x PCIe Gen5, 12x DDR5, 2x Intel 1GbE, 2x M.2, 10x SATA/NVMe
• 1x Supermicro SFT-OOB-LIC, per-node license for out-of-band BIOS management/upgrade via IPMI
• 1x Supermicro CSE-825TQC-R802LPB, 8x SATA/SAS III hot-swappable, 2U, rails included, 800 W redundant PSU, Titanium level
• 1x Samsung PM9A1 2 TB NVMe M.2 Gen4, workstation class, 7 GB/s read, 5.2 GB/s write, short form factor
• 1x Yes: IPMI/hardware RAID preinstall service (excluding OS install)
• 2x Outlet power cable, 1.8 m, C13 IEC to C14 IEC for remote powerswitch/UPS

Dell PowerEdge R7725 (recommended for AI-RAN)

• Chassis: PowerEdge R7725, up to 8x E3.5 NVMe Direct bays
• CPU: 2x AMD EPYC 9335, 3.0 GHz, 32C/64T, 128 MB cache, 210 W, DDR5-6400
• Memory: RDIMM 6400 MT/s, 2x 64 GB (128 GB total)
• Boot: BOSS-N1 controller with 2x M.2 480 GB (RAID 1)
• Storage: 2x 1.6 TB NVMe E3s Gen5 mixed-use SSD (with carriers)
• GPU: 1x NVIDIA RTX PRO 6000 Blackwell Server Edition 96 GB PCIe, 600 W cable installed
• PSU: Redundant (1+1) 3200 W Titanium, hot-plug
• Cooling: PowerEdge 2U high-performance fans

O-RAN 7.2 FHI Requirements

Sync-Plane (PTP)

Recommended fronthaul switch models:

• Falcon-RX/812/G
• μFalcon-RX

Fig1. Falcon-RX/812/G

Fig2. μFalcon-RX

danger

A GPS antenna is MANDATORY as the sync source for the PTP master clock. If a GPS antenna is not connected or is unstable, BubbleRAN does not take responsibility for PTP instability.

Supported Radio Units (RUs)

The following RUs are supported:

• LiteON FlexFi Indoor Sub-6GHz n78/n77 Radio Unit
• Benetel RAN550
• Benetel RAN650

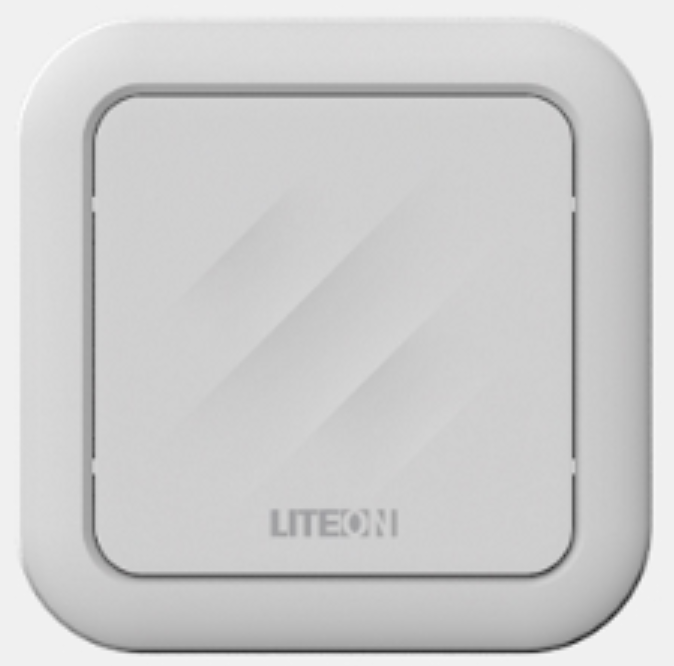

Fig3. LiteON FlexFi Indoor Sub-6GHz

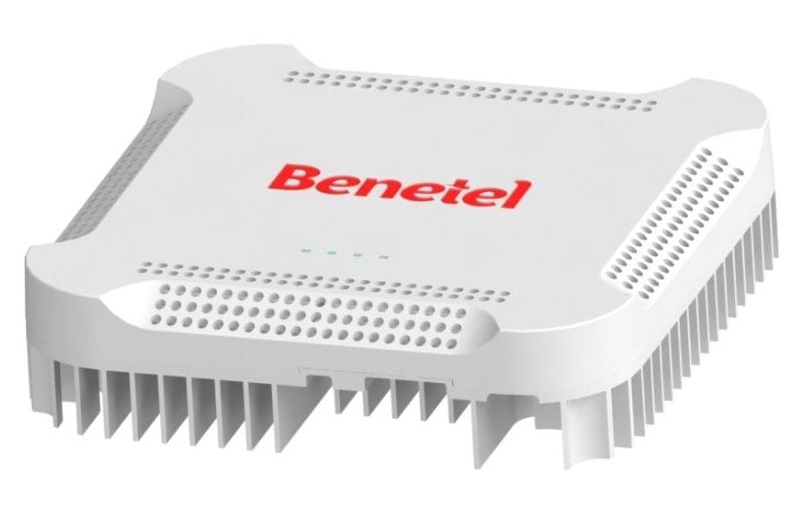

Fig4. Benetel RAN550

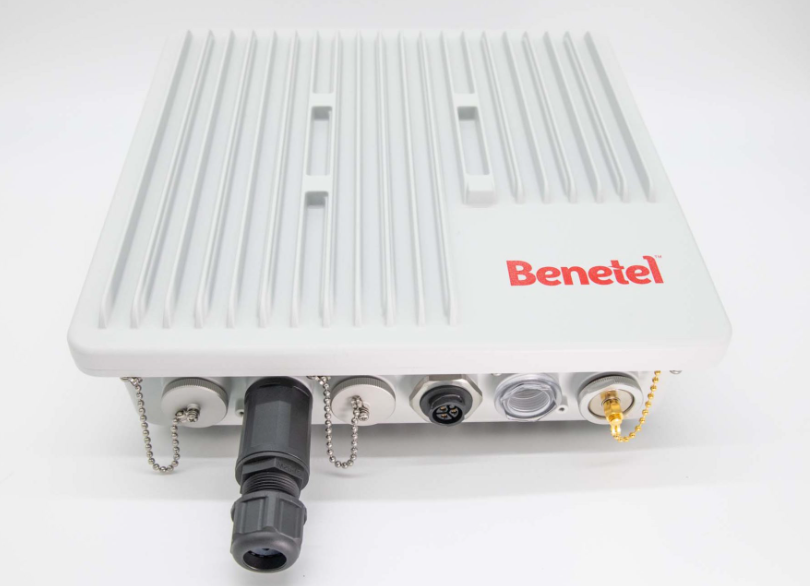

Fig5. Benetel RAN650
